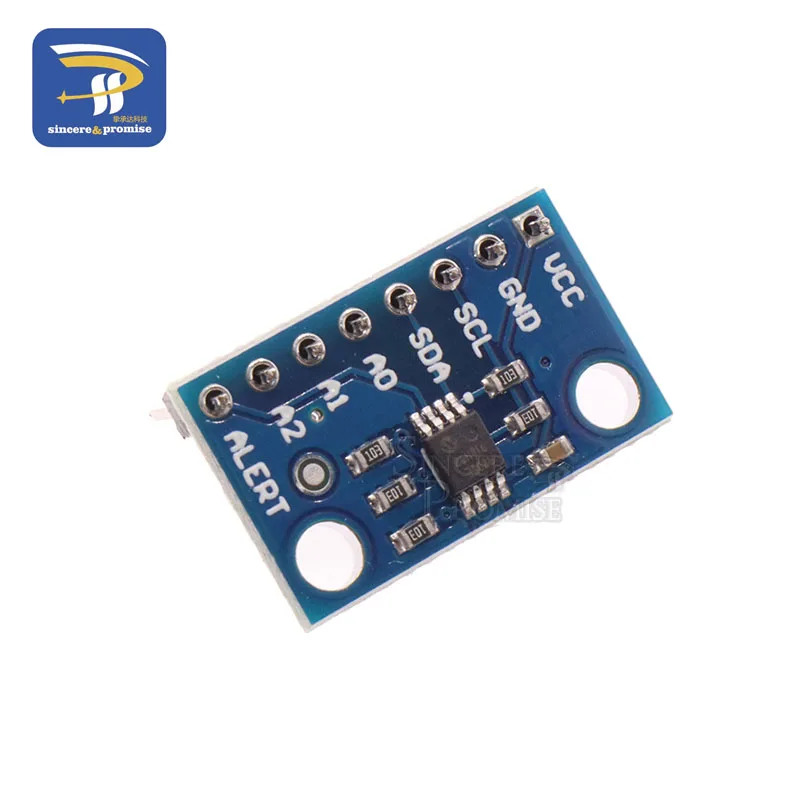

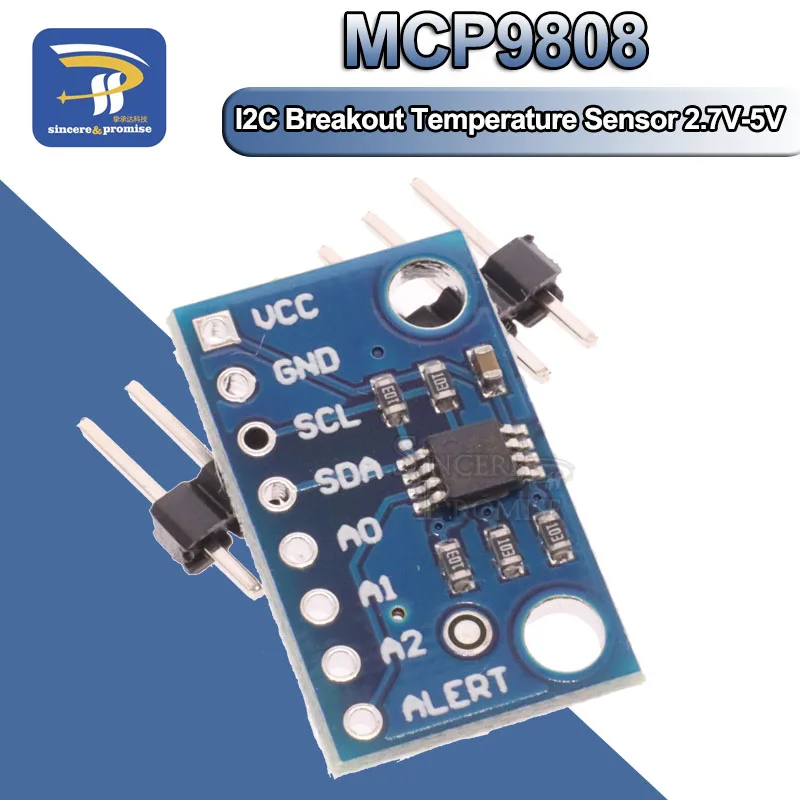

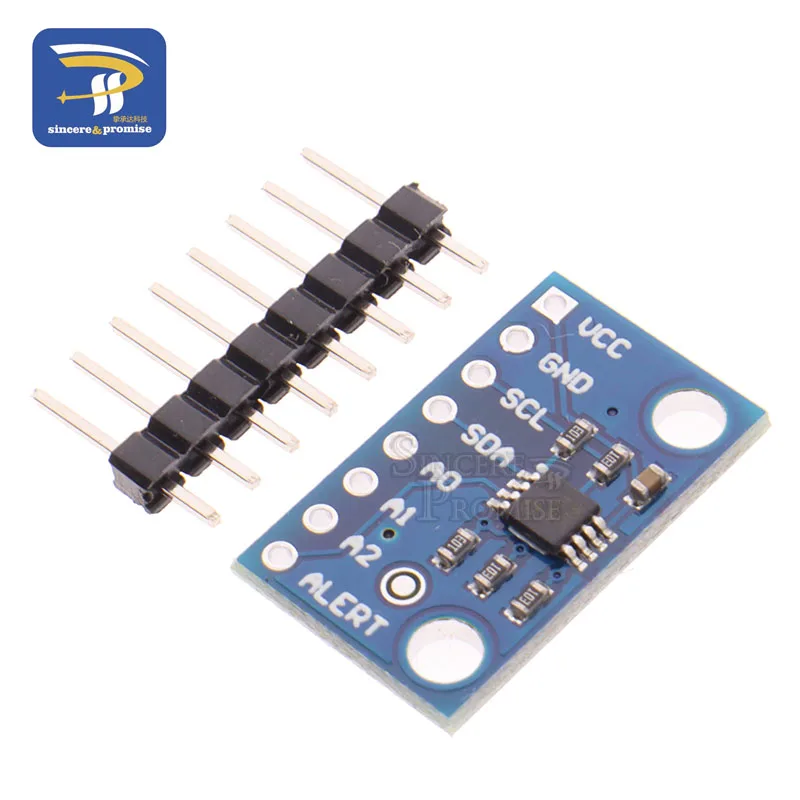

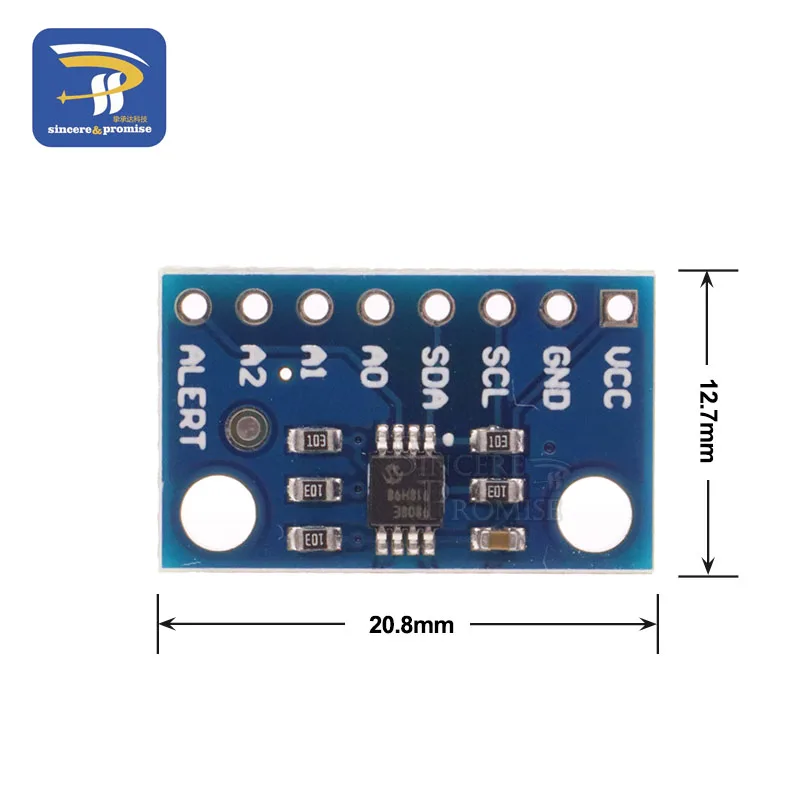

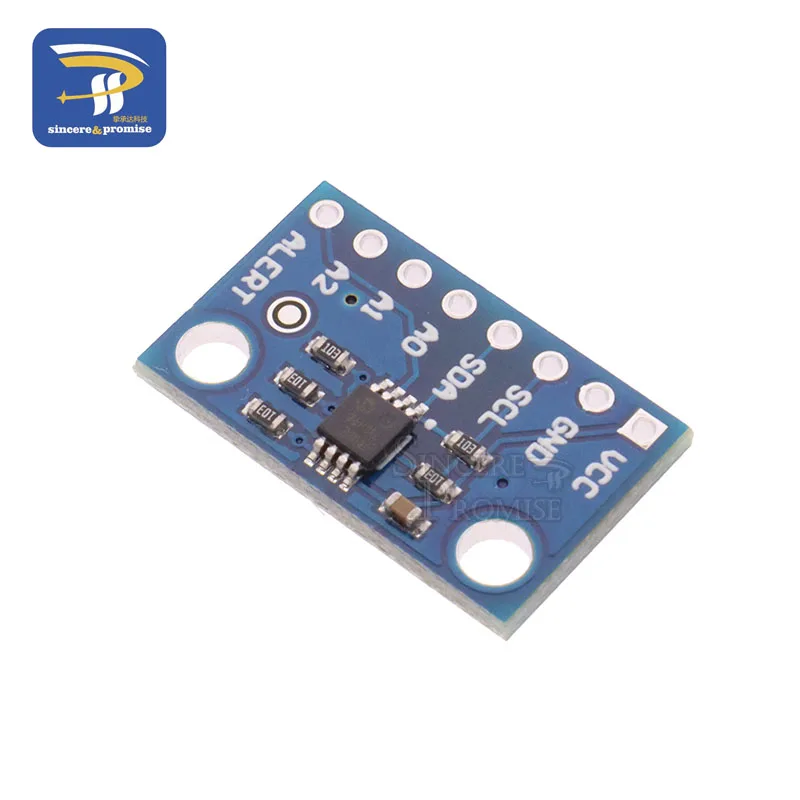

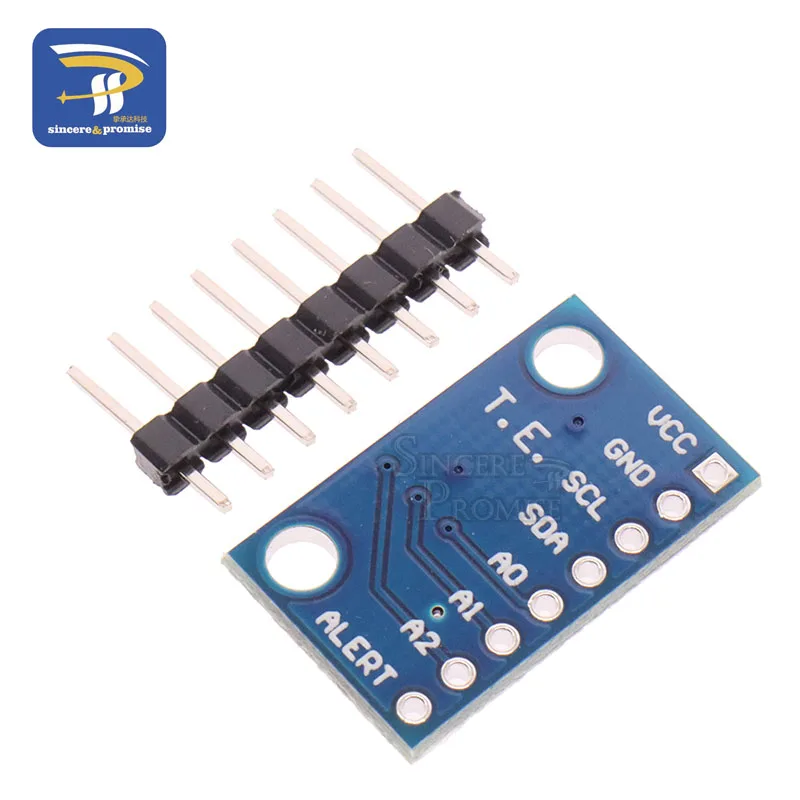

High Accuracy Temperature Sensor MCP9808 I2C Breakout Board Module 2.7V-5V Logic Voltage for Arduino 9808

High Accuracy Temperature Sensor MCP9808 I2C Breakout Board Module 2.7V-5V Logic Voltage for Arduino 9808

$6.99

965 in stock

Features

• Accuracy:

– ±0.25 (typical) from -40°C to +125°C

– ±0.5°C (maximum) from -20°C to 100°C

– ±1°C (maximum) from -40°C to +125°C

• User-Selectable Measurement Resolution:

– +0.5°C, +0.25°C, +0.125°C, +0.0625°C

• User-Programmable Temperature Limits:

– Temperature Window Limit

– Critical Temperature Limit

• User-Programmable Temperature Alert Output

• Operating Voltage Range: 2.7V to 5.5V

• Operating Current: 200 µA (typical)

• Shutdown Current: 0.1 µA (typical)

• 2-wire Interface: I2C™/SMBus Compatible
